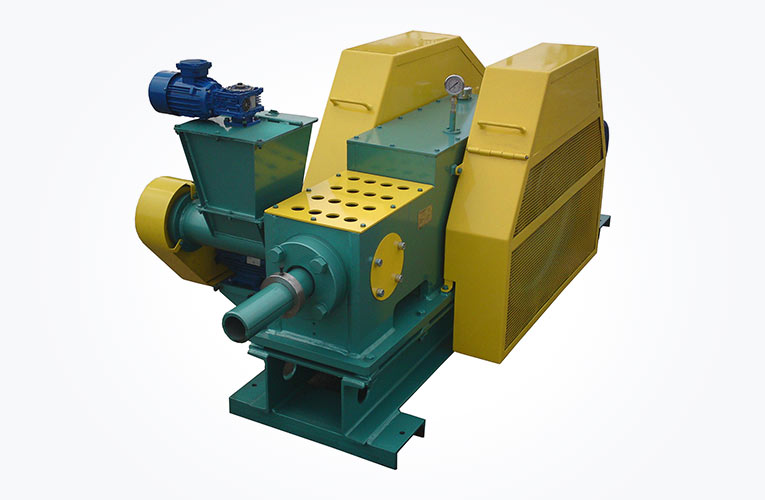

Briquetting press BT-60

* The efficiency depends on the raw material and the diameter of the briquette being produced and the quality of the briquette (industrial / consumer)

Eccentric and piston mechanical briquetting press

The BT-60 Briquetting press is designed for the production of compressed fuel (without additives):

briquettes with a diameter of 50, 60-67 mm
large pellets 17-20 mm
and small pellets 11-13 mm.

Description of the machine

Description of the machine

Silo - a dry biomass tank with a capacity of 1.8 m3 - worm gearbox with a 3 kW motor
Worm feeder with worm gearbox and 1.5 kW motor controlled by an inverter
BT-60 Briquetting press: main motor 22 kW, worm drive 5.5 kW controlled by an inverter, pressing worm drive 0.55 kW
Briquette collection track length of 6 m
Control cabinet - control of briquetting press, worm feeder and silo

Technical data

Briquette size - mm Ø 50-67

Main motor 22 kW

Feeder screw motor 5,5 kW

Performance range

Briquetting of forestry materials 400-750 kg/h*

Briquetting of agricultural materials 250-500 kg/h*

Briquetting of agricultural materials 100-400 kg/h*

Pelleting of agricultural materials 100-350 kg/h*

Pressure lubrication yes

Control system - standard (optional)

Dimensions (LxWxH) mm 2700 x 1100 x 1000

Weight application (kg) app. 2400 kg

Briquetting press BT-60

Briquetting press BT-60

Technical data
